DSX: the solution disposing fluids and smoke waste

Safe, innovative
and eco sustainable
multidisciplinary unit
for hazardous waste

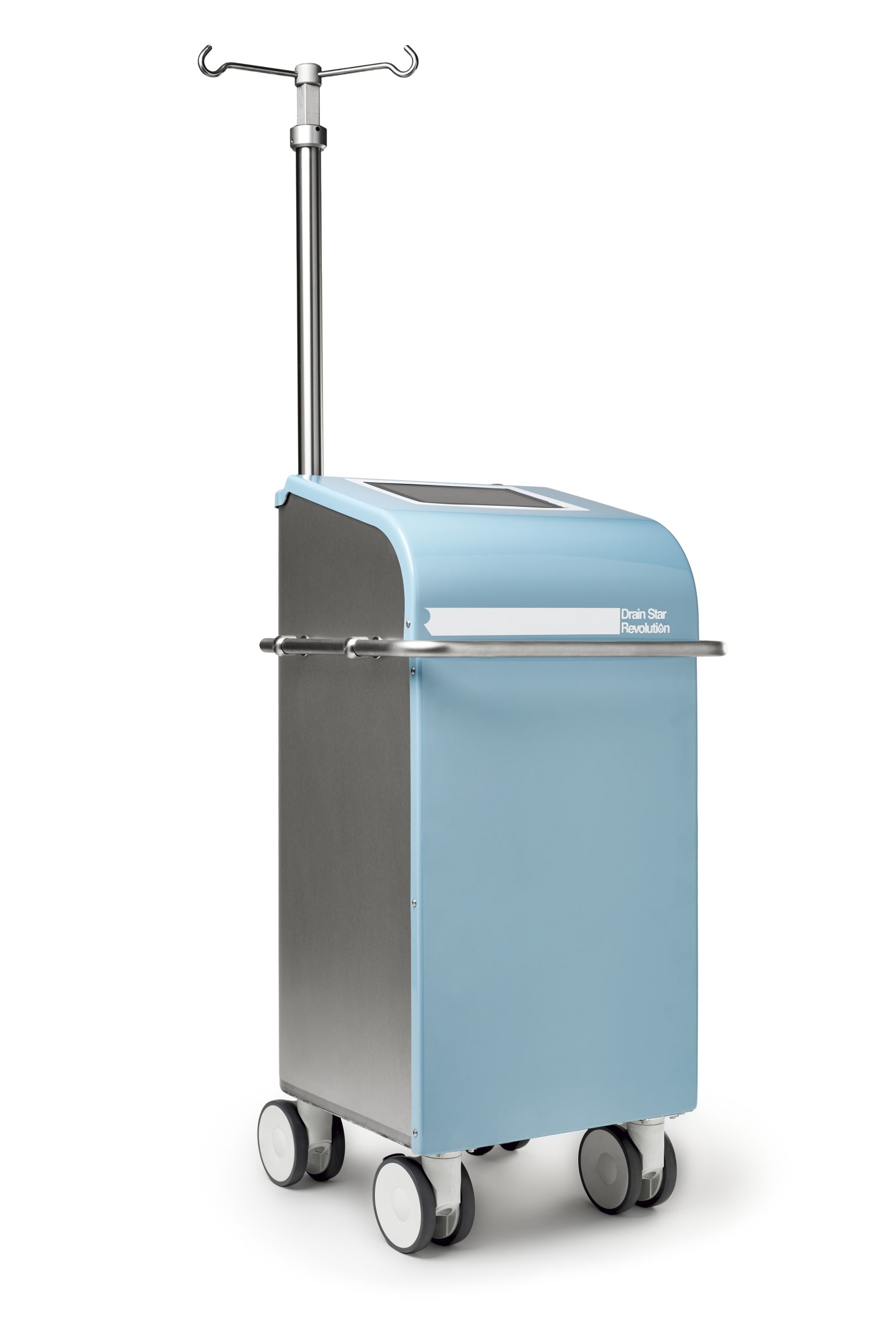

Drain Star Revolution, the next generation in surgical fluid collection and disposal systems is the result of over 15 years experience. The high volume capacity allows uninterrupted performance for OT staff, managing fluid and smoke waste by a portable unit totally closed.


Eliminate canister replacement & disposal

Reduce solid waste disposal costs

Operate with safe, continuous suction for any surgeries

Environmentally friendly solution
to bioburden removal during surgery

Battery powered for use in ward as I.C.U. (CVVH), dialysis or catheterized patients

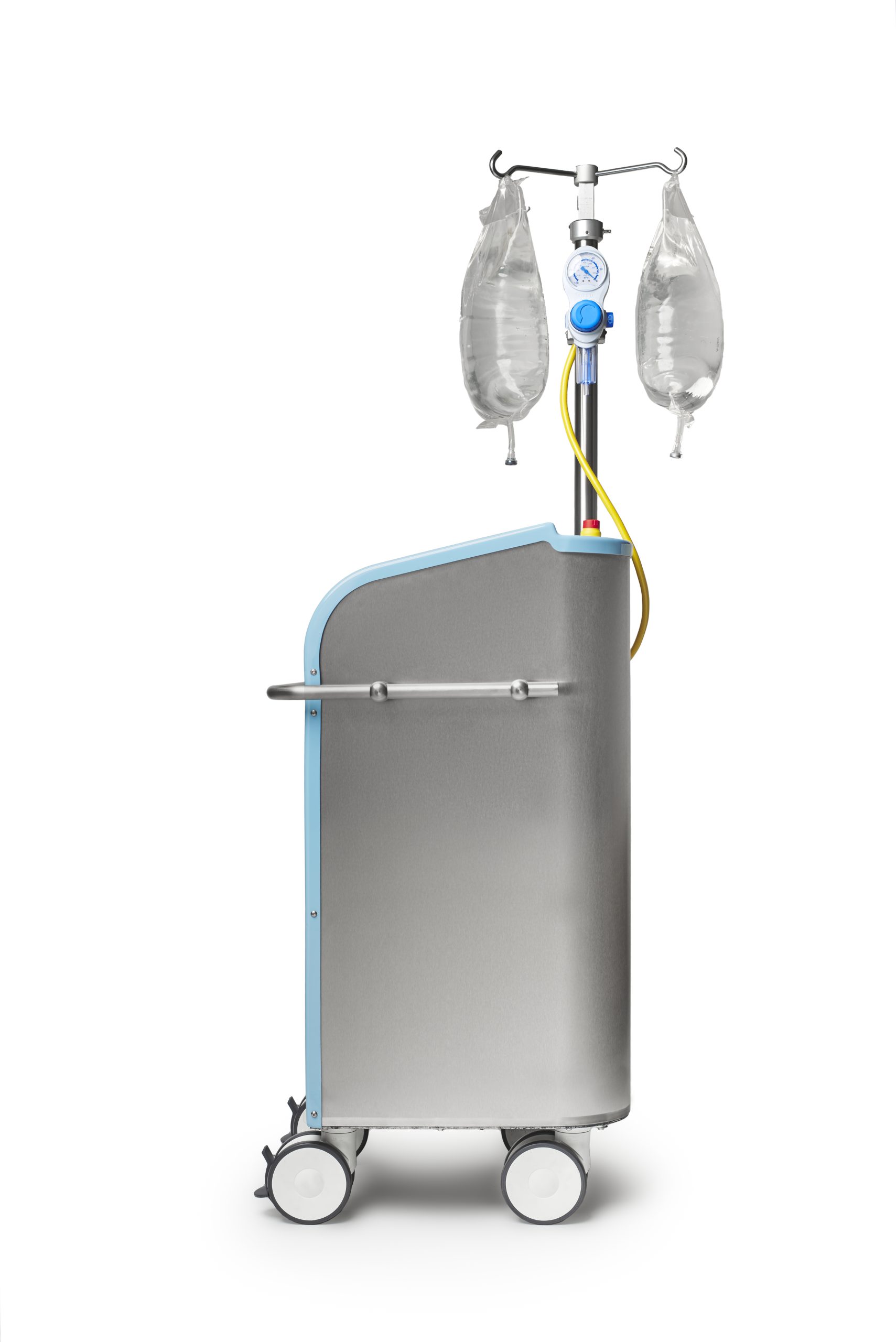

I.V. Pole

Lifter with electrical height adjustment

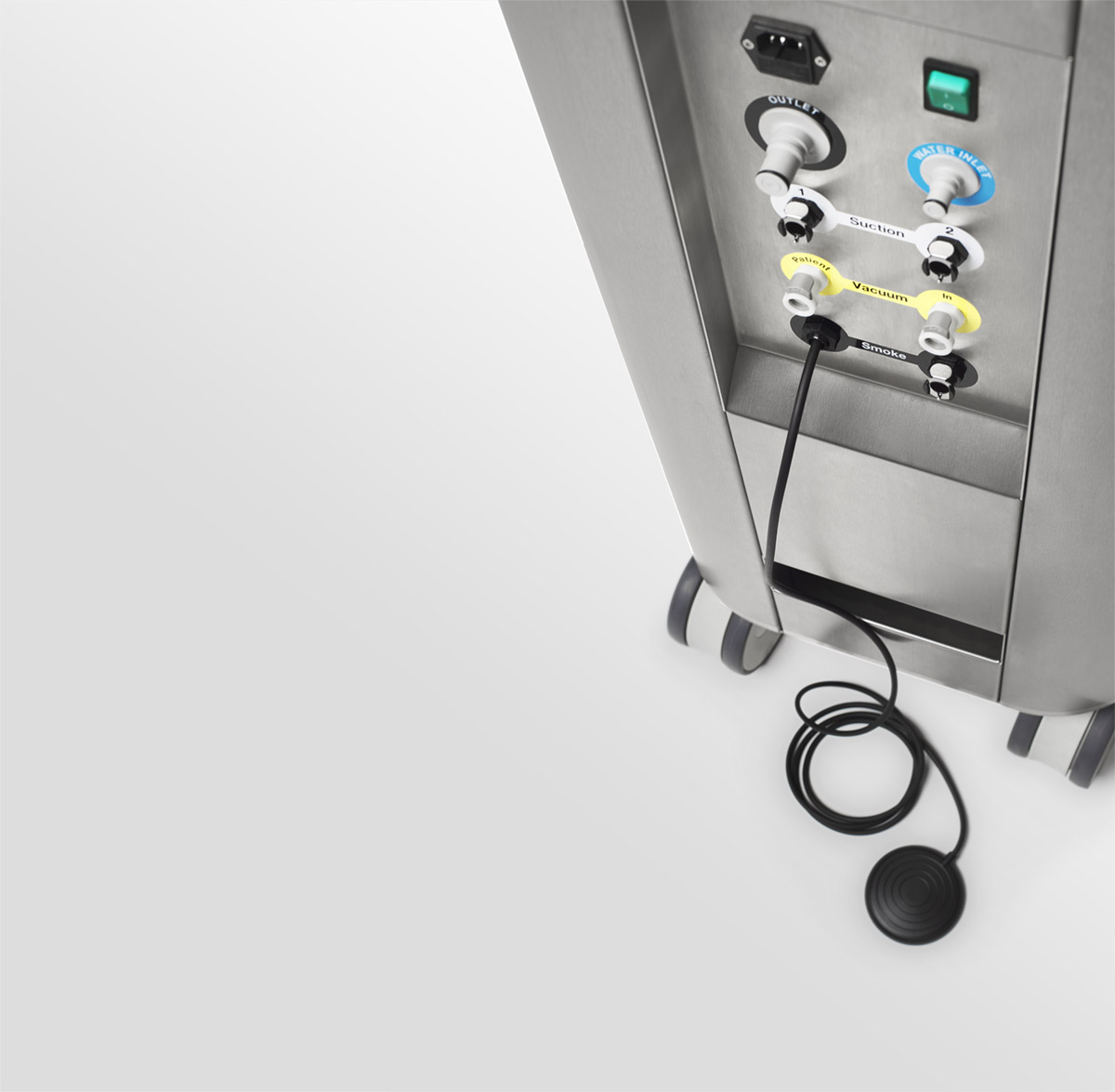

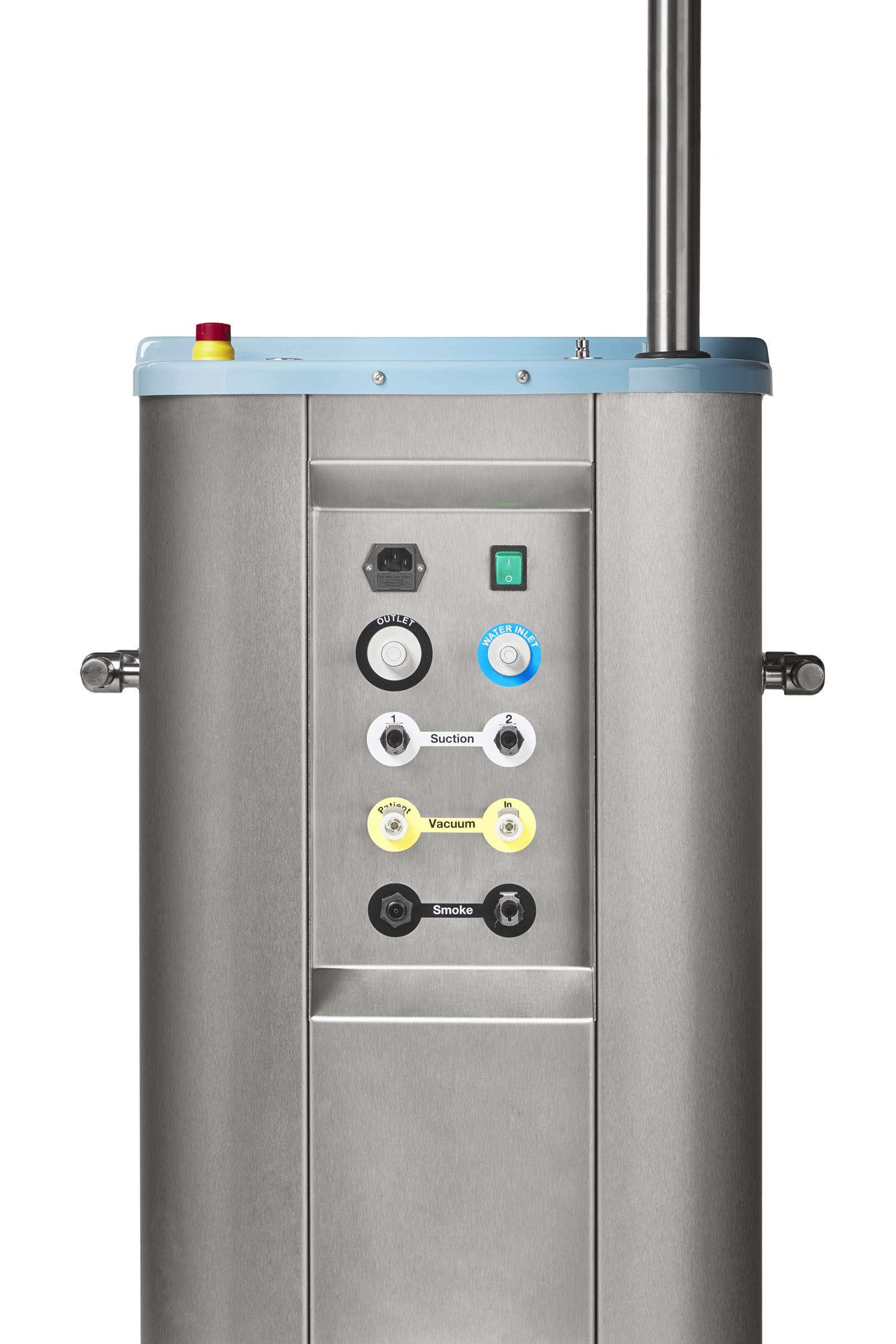

Two independent suction lines low vacuum

Vacuum suction

High vacuum suction channel (not included in dsxr version)

Laparoscopic smoke evacuator

ULPA Smoke filtration kit for Laparoscopy (not included in dsxr version)

Bacterial neutralization

Of the collected fluids


Automatic system decontamination cycle

High accuracy volume measurement


Dimensions: cm 55 x 55 x 160 h

Weight: 72 kg

Structure: Stainless steel

Wheels: 125 mm diameter, two with brake

Supply: Voltage 110V – 230VAC 50/60 Hz Cyclical battery 12V 14Ah AGM

Capacity: 62 litres

I.V. Pole: Maximum load capacity 30 Kg, regulating range 1.500 – 2.650 mm

Low vacuum suction: Two independent suction line

High vacuum suction: Adjustable channel up to 700mm/Hg

Smoke evacuation: Activated by footswitch with ULPA filter

Evacuation: 8 lt/min

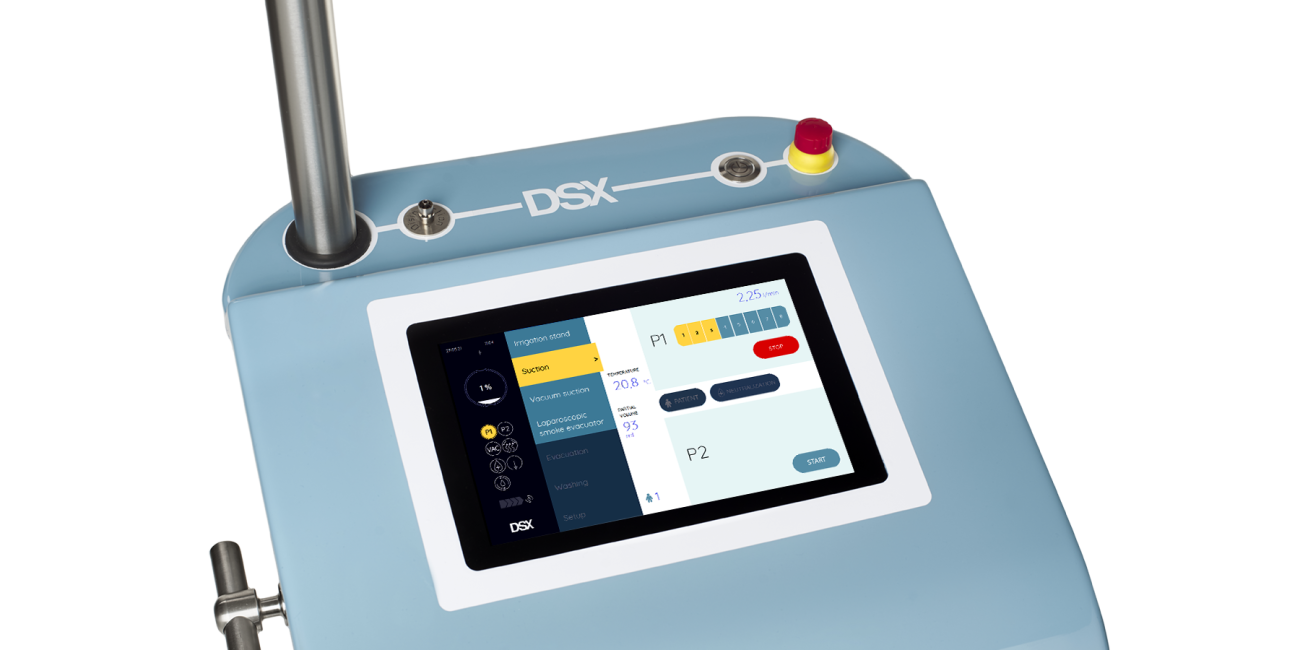

User interface: 10.1” Display Touchscreen

Mode of operation: Continuous/Intermittent by mains supply or battery

Data memory: Up to 42 patients

Temperature: By display with configurable alarm

High level disinfectant reservoir: 1,5 lt internal container

Decontamination cycle: Totally automatic
